The "Statistics" tab displays a list of
countries and the number of messages either rejected or permitted through XE-Filter.
Specific countries are defined as either "Banned" or "Allowed" under the
Countries tab.
The refresh period, initially set to 5 minutes, can be changed
under the Options tab.
Clicking column headings sorts the column in descending or ascending order.
|

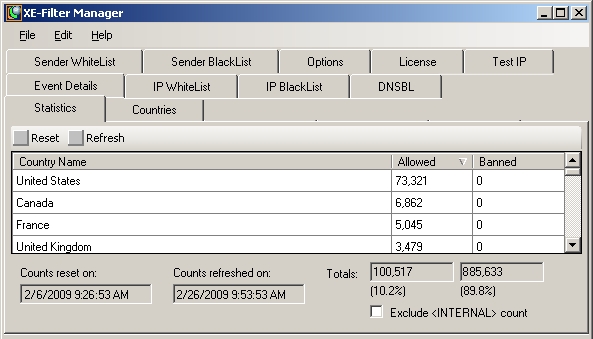

THE "ALLOWED" COLUMN
|
|
This shows the number of
messages accepted from countries on either the "Allowed Country List"
or from IP addresses contained in the
whitelist.
|
|

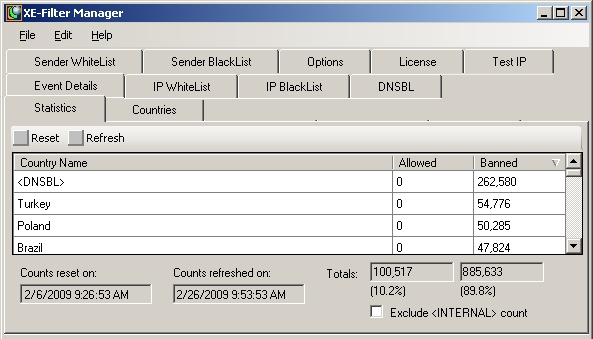

THE "BANNED" COLUMN
|
|
This shows the number of
messages refused before ever reaching your mail server.
These emails were determined to be from countries on the "Banned Country List"
or from IP addresses contained in the
blacklist.
|
|
"COUNTS RESET ON" |
|
Displays the date and time when the counters were last set to zero.
Pressing the "Reset" button reinitializes these values to zero.
IIS SMTP must be running for "Reset" to function. |
|
"COUNTS REFRESHED"
|
|
Time stamp showing the last update for the numbers shown.
Pressing the "Refresh" button updates the displayed fields with the
latest values
IIS SMTP must be running for "Refresh" to function. |
|
THE "TOTALS" FIELDS |
|
The "Totals" fields display summations for the Allowed and Banned
column message counts and percentage of total inbound traffic.
When the "Exclude <INTERNAL> count" box is checked, these totals exclude email from internal sources with
non-routable IP addresses. For example, 10.x.x.x and
192.168.x.x.
|
