ES-Insight How To

General Documentation: Activating / Configuring / Running

	Go to ES-Insight Main
	Email ES-Insight Support
	Go to ES-Insight FAQ

Installation, configuration and use of ES-Insight are very straight-forward processes.

This "How-To" page is presented as a brief overview, familiarizing the user with these operations.

If more assistance is required, contact CMS Technical Support.

Click on thumbnail pictures to enlarge.

ACTIVATING ES-INSIGHT

Click to enlarge
ES-Insight is initially installed as the "Evaluation" edition. To activate the "PRO" edition, enter an "Activation Code" into the "File->Settings" box.

The Activation Code is sent to the buyer via email and is registered to the buyers email address. The ES-Insight Evaluation edition requires no activation.

MESSAGE SUMMARY

Click to enlarge
The "Message Summary" screen is the main base of operations for ES-Insight.

The "left-hand pane" shows all log files available for study as well as any "filter" nodes.

The "right-hand pane" displays a color-coded summary of all available individual messages.

SETTING UP IIS SMTP LOGGING

Click to enlarge

ES-Insight requires that all message information be written into the IIS SMTP log.

By accessing the IIS Manager, the Default SMTP Server can be configured to enable logging and set the extended logging properties.

QUICK ACCESS BUTTONS

CMS ES-Insight Quick Access Buttons

	IP FREQUENCY from SELECTED log files
	COUNTRY FREQUENCY from SELECTED log files
	IP FREQUENCY from ALL log files
	COUNTRY FREQUENCY from ALL log files

FILE MENU ITEM

Open...	Settings... General
SMTP W3C log file(s)	Activate ES-Insight PRO Email reports Sponsor window toggle
Settings... Country	Settings... Columns
Set home country	Select W3C data to display Configure email direction
Settings... Local Servers
Enter IP addresses of local servers

EDIT MENU ITEM

Find... / Find Next	Filter...
BASIC	BASIC
Simple string search Searches right pane message summary list	Simple string search Creates filtered display as a new left pane node

ADVANCED	ADVANCED
Search specific log criteria Searches right pane message summary list	Filter using specific log criteria Creates filtered display as a new left pane node

VIEW MENU ITEM

Columns...

Controls the displayed columns

Shortcut to File->Columns menu item

REPORTS MENU ITEM

IP Frequency... For the selected log file, show IP address frequency counts

Country Frequency... For the selected log file selected, show country frequency counts

All Logs IP Frequency For all open log files and specifying a direction (From Internet or To Internet) show IP address frequency counts

All Logs Country Frequency... For all open log files and specifying a direction (From Internet or To Internet) show country frequency counts

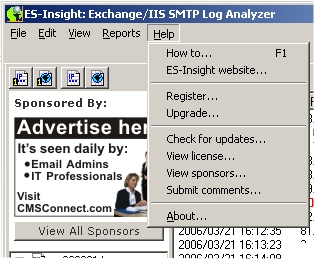

HELP MENU ITEM

How to... Internet access to the ES-Insight online documentation

ES-Insight website... Visit the ES-Insight website

Register... EMail support questions to CMS

Upgrade... Purchase ES-Insight PRO

Check for updates.... Check for recent ES-Insight updates

View license... Internet link to ES-Insight license pages

View sponsors... View current ES-Insight sponsor listings

Submit comments... Send email to CMS about general topics

About... Installed version and copyright information

Contact a BL-Monitor representative

Contact CMS about ES-Insight

Return to ES-Insight Home
