These external import files must hold data in
Comma-Separated-Value (CSV) fields and may be text or even
XML files.
|
START THE IMPORT |
|
To import an IP address file, first select either
"IP Blacklist" or "IP Whitelist" in the "To" box on the import
screen.
File
Search

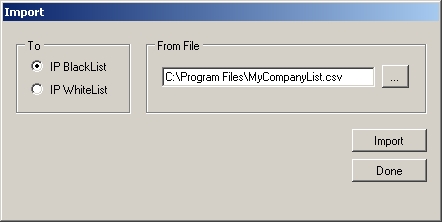

Under the "From File" heading, enter the complete drive and
path information to the location of the file holding the IP
Address import data.
To insure accuracy, a file search button is located to the right of the drive and path
field.
When the correct path and file name is entered in the
"From File" field, press the "Import" button to add
the file information to the XE-Filter whitelist or blacklist.
Selecting the "Done" button before pressing the
"Import" button will immediately close the import screen
and not make any additions into the XE-Filter Whitelist
or Blacklist.
|
|
SUCCESSFUL IMPORT |
|

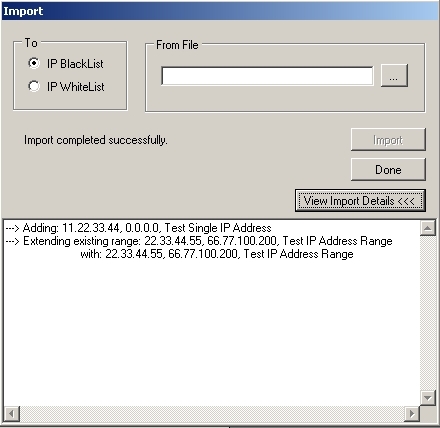

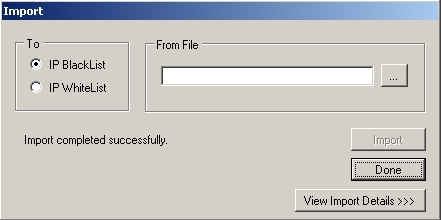

A successful import of IP addresses will clear the "From
File" field and display a new button, "View Import
Details>>>".
Selecting this button will expand the Import Screen to
show all IP addresses added to the whitelist or
blacklist from the selected import files. |
|
IMPORT FILE FORMATS |
|
The XE-Filter Import facility expects all IP Address
files to be in a
"Comma-Separated-Value" (CSV) format.
This CSV format may contain a single IP address or a range of IP
addresses. An optional remark field may be at the
end of the entry.
Only one
IP address or range of addresses is permitted per line.
If the comma character is part of the
<Optional Remark> portion of the import
entry, the entire <Optional Remark> must be enclosed double
quote characters.
|
BASIC FORMATS |
|
Single IP Format
<IP>,,<Optional Remark>
IP Address Range Format
<Starting IP>,<Ending IP>,<Optional
Remark>
|
|
SAMPLES
ENTRIES |
| Description /
Type |
|
Sample |
|
|
Single IP with remark: |
|
11.22.33.44,,Known Spam Server |
|
IP Range with remark: |
|
22.33.44.55,22.33.44.100,Old Supplier |
|
Single IP with no remark: |
|
101.00.110.240,, |
|
IP range
with no remark: |
|
10.120.100.77,10.120.100.90 |
|
Single IP, comma remark: |
|
102.10.100.80,,"Dan,Al,Rich,Lee" |
|
SAMPLE FILE |
|
11.22.33.44,,Known Spam Server
22.33.44.55,22.33.44.100,Old Supplier
101.00.110.240,,
10.120.100.77,10.120.100.90
102.10.100.80,,"Dan,Al,Rich,Lee" |
|
|
